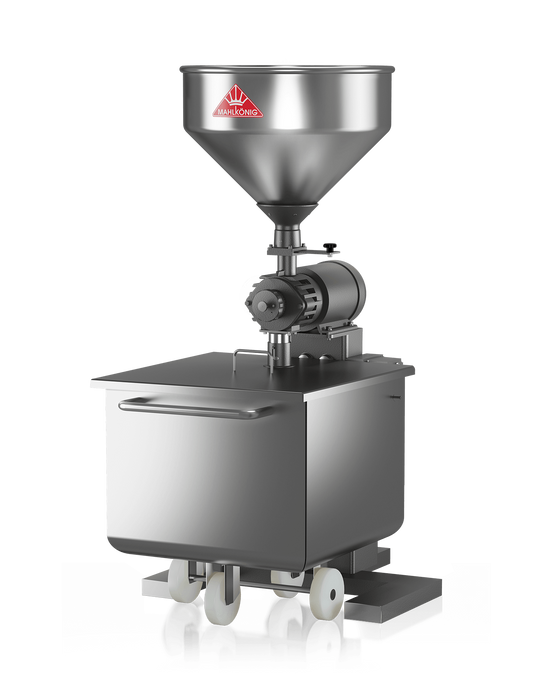

DK15 Industrial Coffee Grinder

DK15

Industrial Grinder

OUTSTANDING GRIND QUALITY

The DK15 provides smaller roasters with the perfect entry to industrial grinding. It features an even, premium grinding quality produced by its wear-resistant burrs. Its capacity ranges from 105 kg up to 200 kg per hour, depending on the model.

Find Your Distributor

Shop Spare Parts

We cooperate with sales and service partners in more than 90 countries around the globe. Find the distributor that is closest to you and get into contact.

MORE INFORMATION

Features

Technical Details

Downloads

Outstanding even grinding quality
Wear-resistant premium burrs
Powerful three-phase motor with surface cooling and high starting torque – suitable for continuous operation
Motor ventilation
Overload protection
Service-free, constantly greased bearings
Ground material container (capacity 200 l)
Bean hopper magnet

Voltage // frequencies // phases:

380-415 V // 50/60 Hz // 3~
208-220 V // 50/60 Hz // 3~

Idle speed: 1440 rpm (50 Hz); 1730 rpm (60 Hz)

Burr diameter: 130 mm

Burr material:

DK15 LS, DM15 LS:

Fully hardened special steel
Grind Life (median setting): ca. 10-15 tons

DK15 L, DP15 L, DG15 L:

Fully hardened cast steel
Grind Life (median setting): ca. 15-20 tons

DK15 LH:

Tungsten Carbide
Grind Life (median setting): ca. 25-30 tons

Grinding capacity - fine* kg/h (approx.):

105 (DK15 L)
120 (DK15 LS, DK15 LH)
130 (DG15 L)
200 (DP15 L)

Grinding capacity - medium* kg/h (approx.):

115 (DK15 L)
130 (DK15 LS, DK15 LH)
150 (DG15 L)
220 (DP15 L)

Bean hopper capacity: approx. 30 kg

Max. nominal power: 2200 W

Dimensions (w x h x d):

79 x 155 x 123 cm (incl. base)
69 x 70 x 79 cm l 200 l (container)

Dimensions of packing (w x h x d): Depends on individual version and equipment

Net weight: 132 kg (incl. base)

Gross weight: Depends on individual version and equipment

Standard colors:

Textured, reddish grey

Special equipment:

Burrs for grains or for other grinding goods
Electro-pneumatic gate for a controlled supply of material
Stepless grind adjustment for DP15 L model
Pulling tool optional accessory

Legend:

DK15 L (Cast steel for Coffee)
DK15 LS (Steel for Coffee)
DK15 LH (Tungsten carbide for Coffee)
DM15 LS (Steel for Poppy seed)
DP15 L (Cast steel for Pepper)
DG15 L (Cast Steel for Grains)

*Depends on the grinding goods and the chosen degree of fineness.
All measured values under laboratory conditions. Other electric specifications available on request. Subject to change without prior notice.
